Say it ain't so: The Assploded Bike Parts Picture Thread.

it’s supposed to eat the aluminum. I have no first hand experience, have just heard about it being done

there’s some discossion at the bottom of https://sheldonbrown.com/stuck-seatposts.html

Cheers, will have a read. Alumnium bb in an aluminium shell. Could be fun.

1 Like

Put it on the seatpost backwards and ride it around a bit, will even out

9 Likes

Other option is to find a fat guy with a Selle Anatomica and tell yourself it could be worse!

3 Likes

Or better still, find a rut on the opposite side of the track to crash into.

1 Like

We stopped selling them cause noone was buying them and the MOQs were v high. We’d be sitting on 5 yrs worth of stock lol

If I were you, I’d destroy the cup. I mean, it’s either destroy and be successful or destroy and fail (and you were talking about throwing the frame away anyway).

4 Likes

makes sense. when did vo change hands though? i vaguely remember it but the brand has come so far that i can only think of new vo

1 Like

Im riding around on a wrecked frame that had its second shot thanks to a vo bb :grinning: we’re out here but i can see that we would be pretty rare

2 Likes

Yeah, most frames come outta the box with no threads these days. Maybe I should order one from @igor Incase the one in my GB needs replacing down the road.

1 Like

Yeah I can’t get the other side out either Igor. I wonder if I snotted the axel hard enuff it would bust through, and I could poke a hacksaw in there ? But then I guess i’d have to cut thru the fecking bearings too.

the kerf from the cut is enough to reduce the circumference of the cup, they’ll have rom to break loose and escape the confines

2 Likes

Over 5 yrs now. :sunglasses:

7 Likes

Dropped it off at Oli’s place at lunch. He’s got a workshop/ museum 3 kms from my house. I know he has a giant bar welded to a campy BB tool, but he may have hit it with some PB Blaster first. Not got the run-down yet.

26 Likes

…and there was great rejoicing.

2 Likes


8 Likes

and it was good.

1 Like

can’t wait to hear the full tale.

1 Like

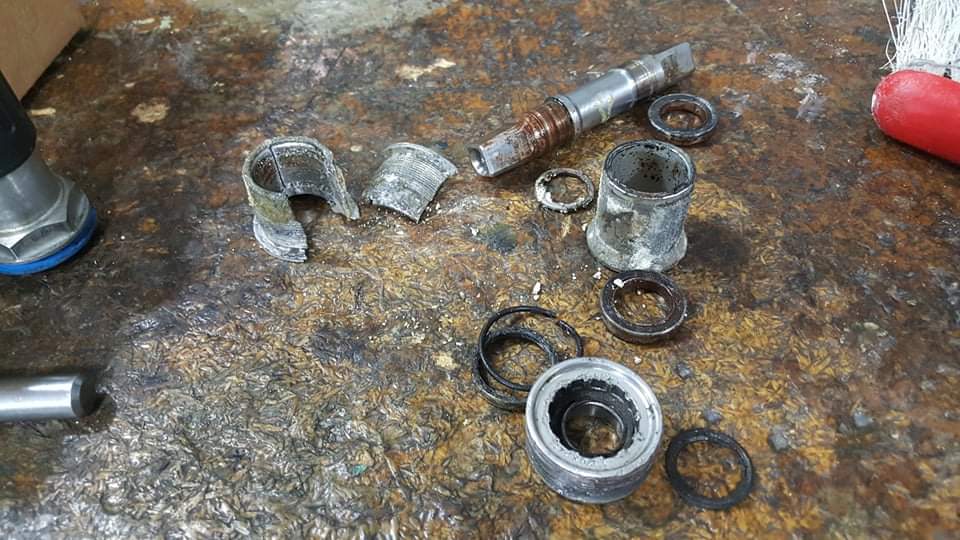

Looks like the other cup came out with non-destructive coercion and they smashed the innards out that direction. Pretty much the only good thing about square taper bottom brackets that are NOT UN2x/UN5x is that you can usually get away with this.

2 Likes

Oli said:

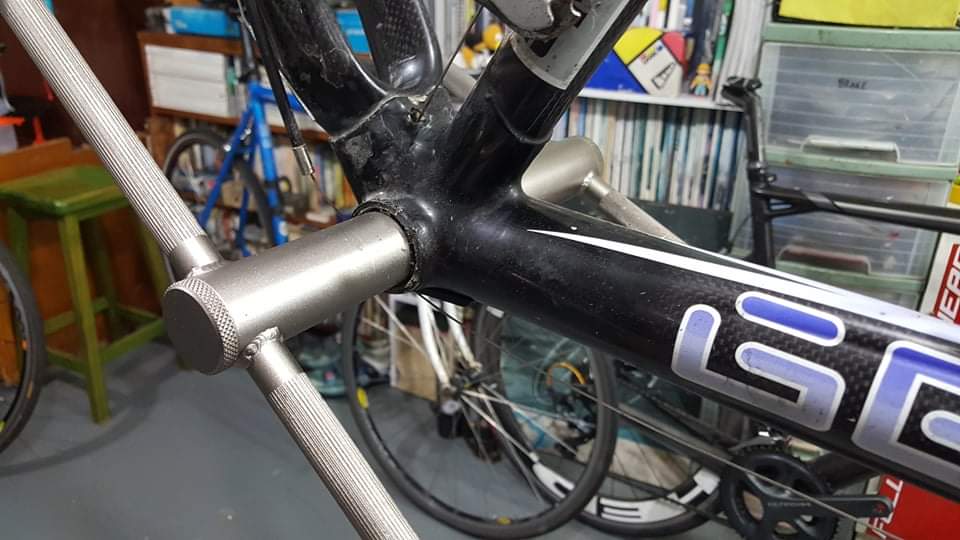

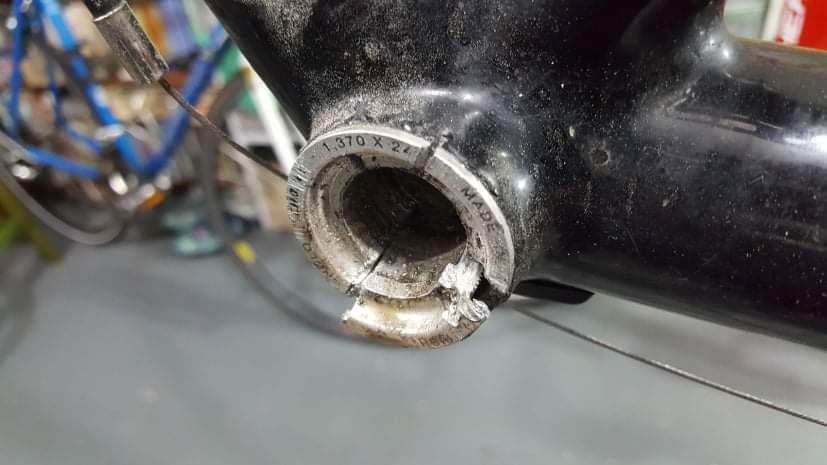

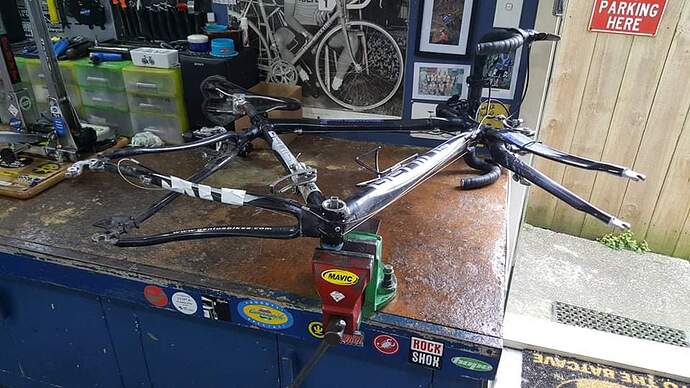

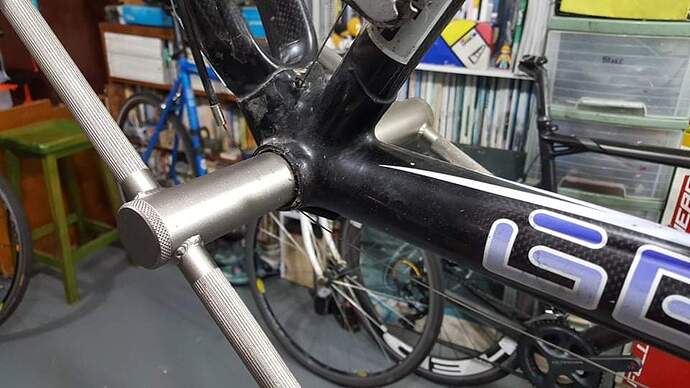

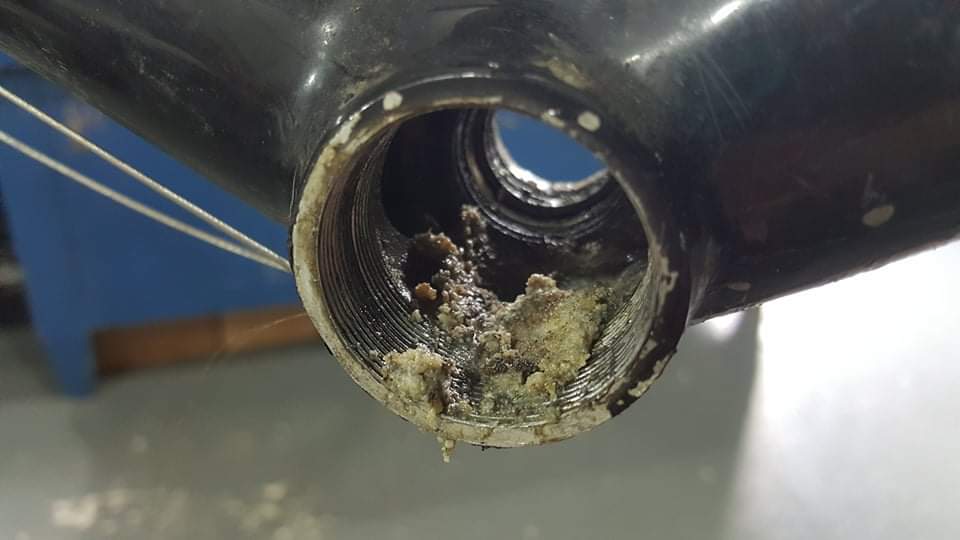

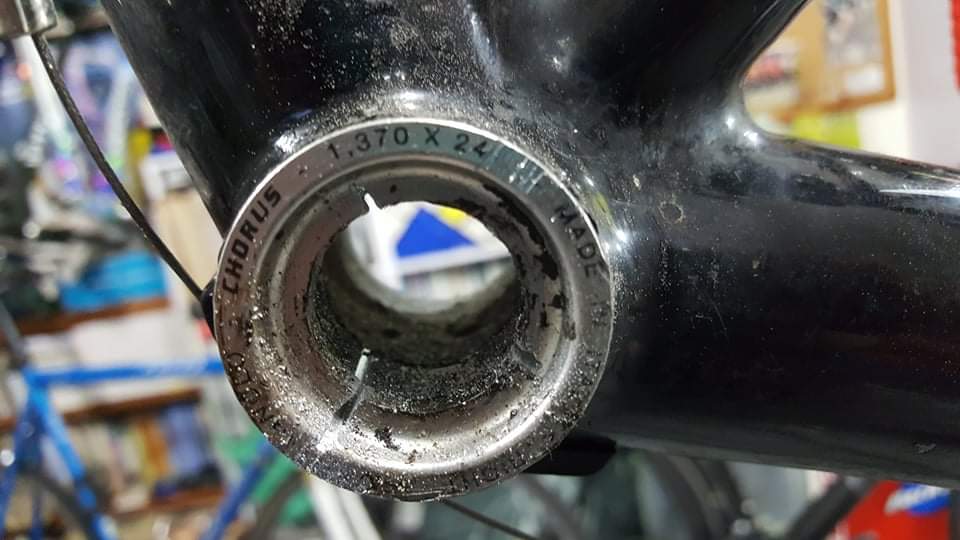

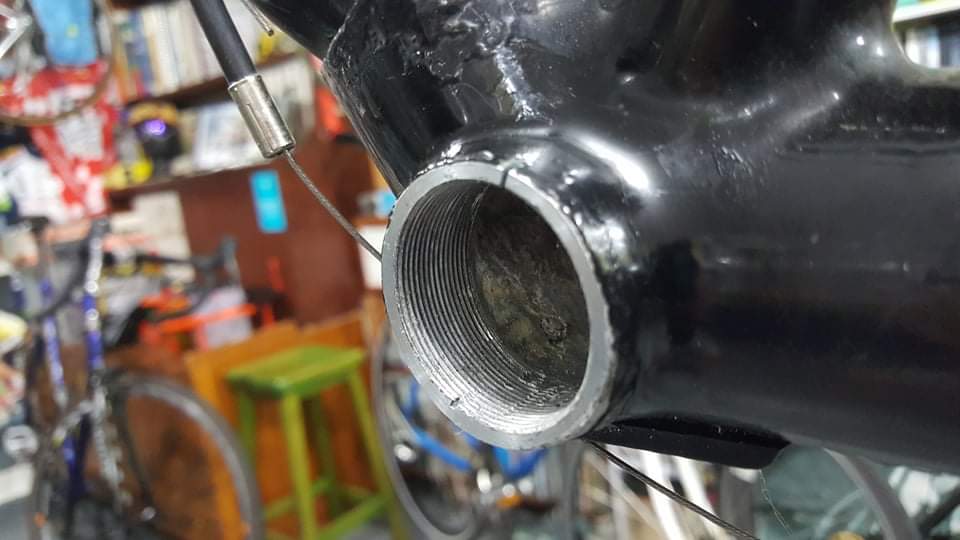

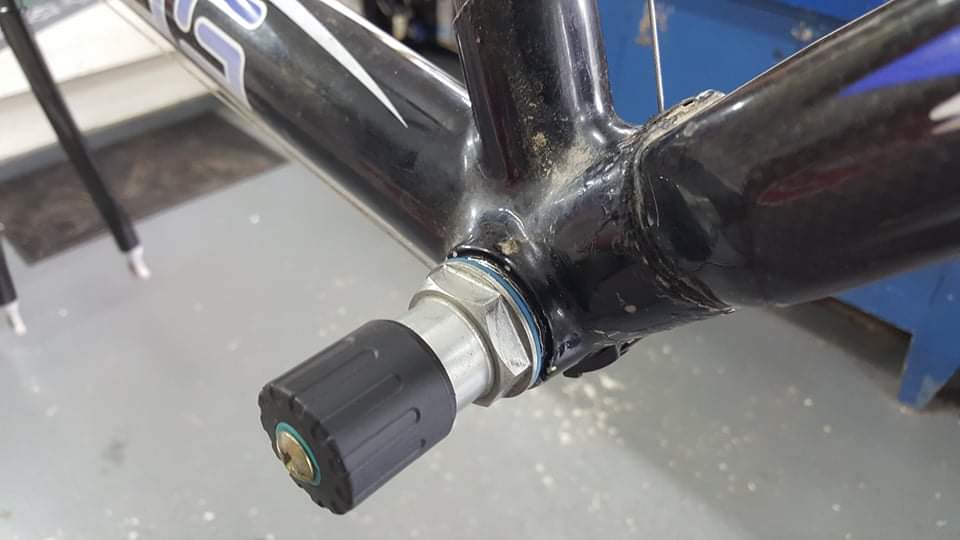

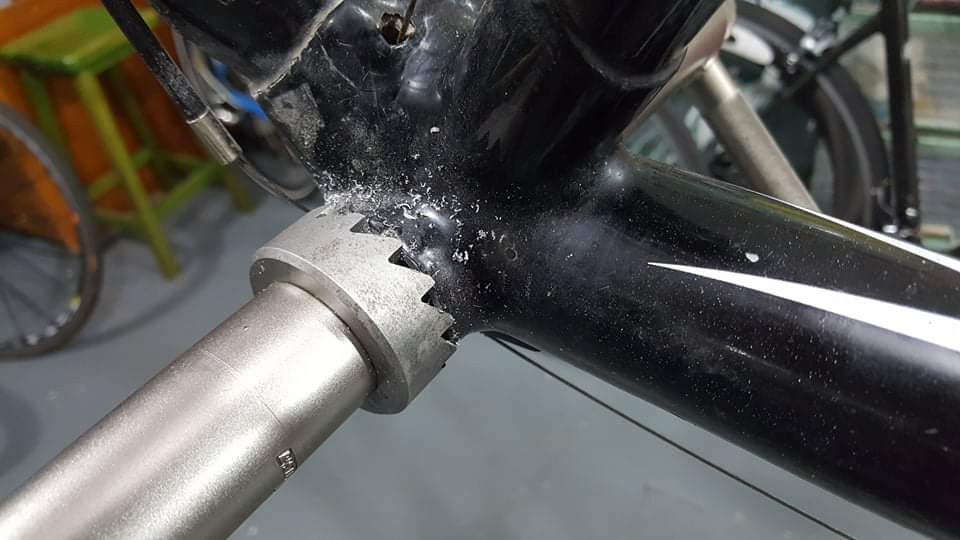

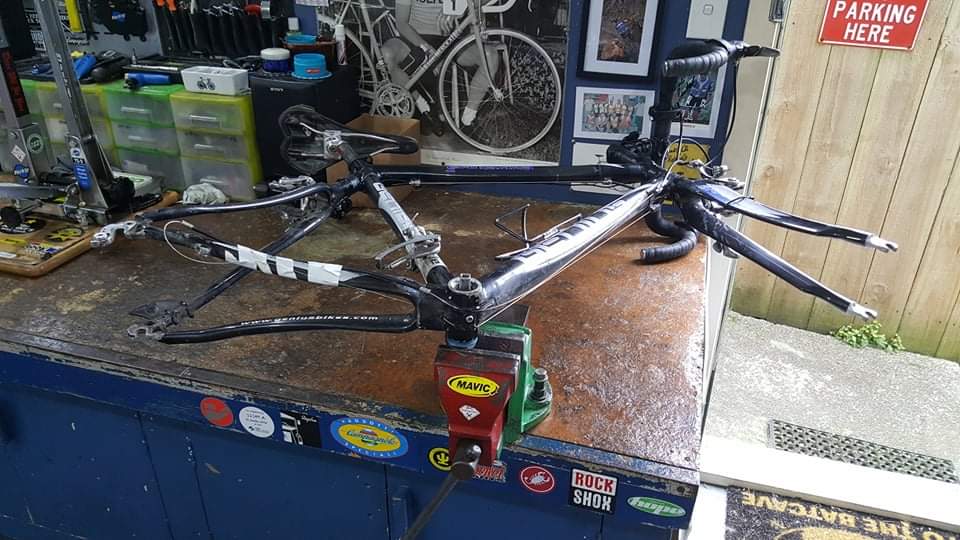

So shot 1 is a TACX tool that screws into the axle and clamps on, but even with the spanner and 1.25m bar it wouldn’t budge but the vice and turning the frame did the job for the nd cup. As you can see in 4 there was massive oxydisation/corrosion in the bb - l’d be concerned for some of the bonding between aluminium and carbon but no way to know how damaged it is. 5 shows the cutting. Once cut it still took a lot of PB Blaster, prying and hammering to break the galvanic corrosion bond and there was some minor damage to the threads and shell, but as you can see in 8,9,10 l retapped the threads and faced the drive side of the shell.









14 Likes

Mmm all the carnage shots without actually having to do it
