Cetma? Wald? Honestly the big Velo Orange and Soma and others that mount to the dropout area seem to hold up fine (or do we know of them breaking too?)

I believe the key difference is that these newer platform racks are attaching midway up the fork leg. BITD you had:

  1. Small front bag supports, which were essentially small racks but only for small rando bags and sometimes used with decaleurs.
  2. Porteur-style platform racks which had struts down to the dropout eyelet area. That kind of design puts less stress on the fork crown attachment.

Here’s a bunch of older platform racks.
http://www.blackbirdsf.org/courierracing/velos.html

Only one bike on that page has rack struts that are mid-fork. The 1950’s singer, and it is specifically called out as a “light duty” rack. I’m not sure how common that was. At any rate, notice there are two struts that wrap to a plate on the backside of the fork crown, which seems like a nice robust design.
http://www.blackbirdsf.org/courierracing/singer_1950.html

2 Likes
1524

The Haulin Colin rack is by far the best and burliest three point mid fork rack ever made. The crown attachment is a big ass threaded tube and a big ass bolt.

image3024×4032 2.44 MB

Now that I’ve made this post it’ll probably break on my way to work tomorrow, but I’d expect that the bolt not the rack would be the weak point.

2 Likes
1525

I suppose Rusty-proof might be a bridge too far for contemporary design and materials

5 Likes
1526

Good point. Porteur racks what mount near the drop-out seem to have fewer problems. I ran the Wald Giant Basket for a period and while it was super sketchy with a bunch of weight in it, it never seemed in danger of exploding (but again, not Rusty)

1527

I feel like Mash should sell the tang from their rack separately, that thing looks sturdy as hell.

1528

Yeah that thing is yuuuge! @Blakey don’t you have one of the MASH racks? Anyone else?

1529

Yes, it’s a thicc Boi. I also have custom legs to attach it at the endpoint mid fork eyelets.

1530

I bought one for a wifebiek it is thick and not hard so you can still flex it enough to get shit level. It’s 1/4” mild steel.

1531

We ended up using a burly tang on the current racks for this exact reason. It comes with a weight penalty though.

1 Like
1532

I think that penalty is probably worth it to avoid getting a reverse bates diadrant fork

image698×539 202 KB

9 Likes
1533

Looks like the tang is what saved that person from losing some teeth

1534

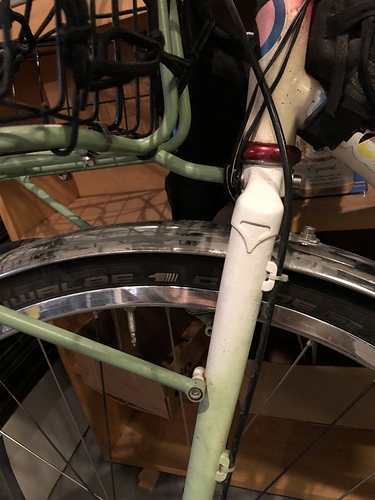

My orcrack does this around the crown loop thing using a Sheldon nut. The strut bolts on the fork legs are in shear, I guess, and they’d be the weak points. Neat rack.

IMG_20200721_224703
IMG_20200721_2247034032×3024 5.03 MB
IMG_20200721_224634
IMG_20200721_2246344032×3024 4.31 MB

11 Likes
1535

but tell me more about dat bike

3 Likes
1536

if I have orc build me a rack it will definitely be that style

1537

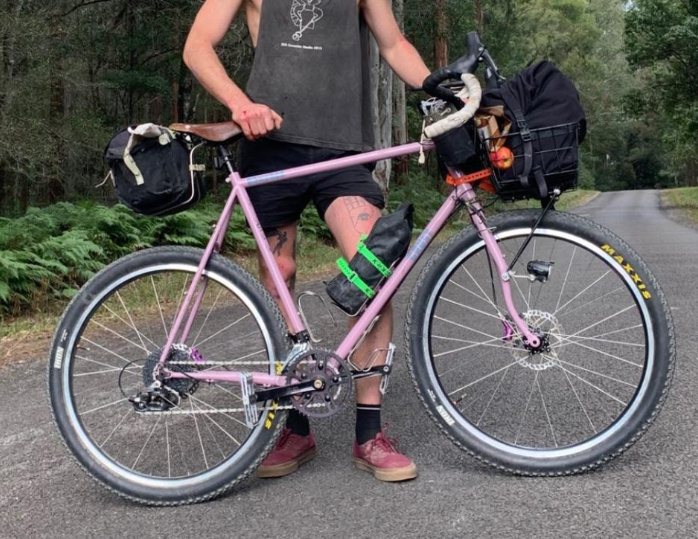

I’ve PYB’ed it a bunch of times. Old Titan-Star wiggle bike with a custom low trail Dreesens fork. Lemme see if I can summon a photo.

1538

Yeah my orc rack attaches behind the crown. I’m going to attempt making my first rack soon and it’s definitely being mounted behind the crown.

1539

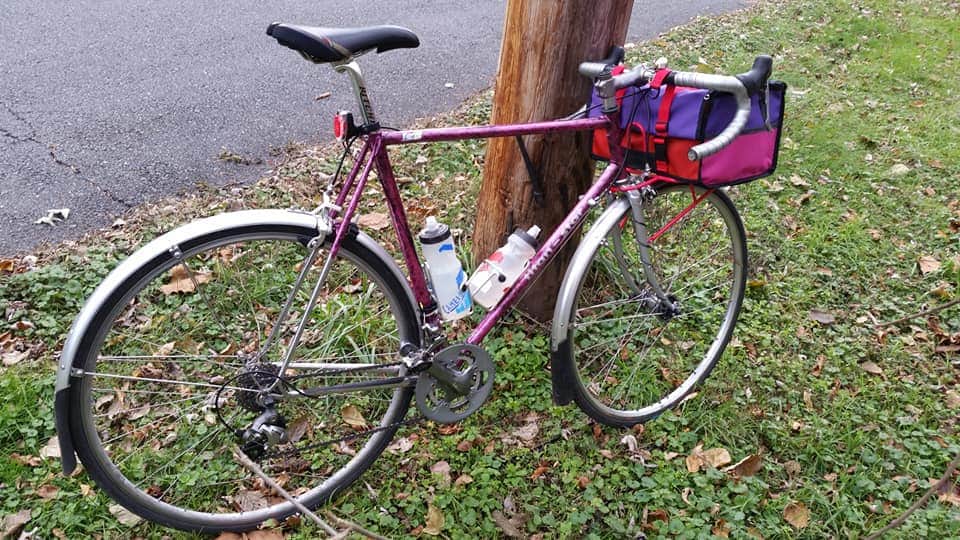

FB_IMG_1595424180014
FB_IMG_1595424180014960×540 116 KB

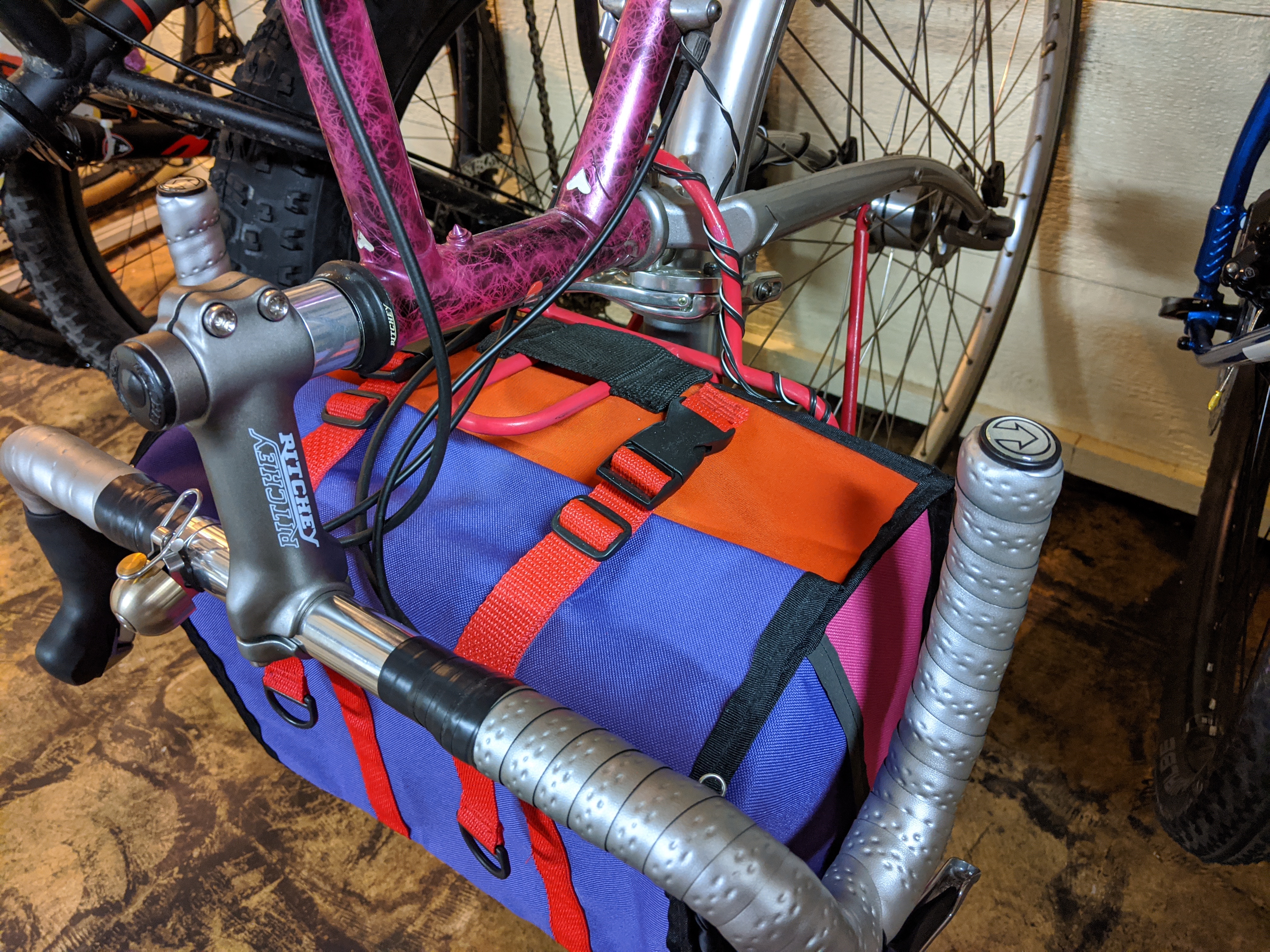

FB_IMG_1595424158784
FB_IMG_15954241587841080×607 62.2 KB

19 Likes
1540

So wait: you had to take the fork off to attach the rack?

I mean, I ain’t mad at it…

1541

I had to do that with a similar wraparound JimBlackburn rack on the tarckyon, as even the wiggle in the rack design didn’t clear the canti studs.

that rack looks like the half moon portion could be manoeuvred up the fork if the brake was removed though?

1 Like
1542

Yeah on my Blackburn just had to remove the front wheel to get the rack on.
